數據相關統計
表1 測序Reads統計
| Type | Number | Percent(%) |
|---|---|---|
| Number of Reads | 1,338,426,735 | |
| Valid Barcodes | 1,262,816,067 | 94.35? |
| Valid UMIs | ?1,329,064,839? | 99.3? |
| Final Valid Reads | 1,262,615,019 | 94.34? |
?表1 note說明
Number of Reads：Reads總數；
Valid Barcodes：包含有效Barcode的Reads數；
Valid UMIs：包含有效UMIs的Reads數；
Final Valid Reads：同時包含有效barcode與UMI的最終Reads數。
表2 數據比對
| Type | Percent(%) |
|---|---|
| Reads Mapped to Genome | 97.63% |
| Reads Mapped Confidently to Genome | 91.24% |
| Reads?Mapped?Confidently?to?Intergenic?Regions | 5.49% |
| Reads Mapped Confidently to Intronic Regions | 6.09% |
| Reads Mapped Confidently to Exonic Regions | 79.66% |
| Reads Mapped Confidently to Transcriptome | 81.42% |
?表2 note說明
Reads Mapped to Genomes：比對到參考基因組上的Reads在總Reads中占的比例；
Reads Mapped Confidently to Genome：比對到參考基因組并得到轉錄本GTF信息支持的Reads在總Reads中占的比例；
Reads Mapped Confidently to Intergenic Regions：比對到基因間區域的Reads在總Reads中占的比例；
Reads Mapped Confidently to Intronic Regions：比對到內含子區域的Reads在總Reads中占的比例；
Reads Mapped Confidently to Exonic Regions：比對到外顯子區域的Reads在總Reads中占的比例；
Reads Mapped Confidently to Transcriptome：比對到已知參考轉錄本的Reads在總Reads中占的比例。
Spots相關統計
Summary
表3 Spots統計
| Tpyes | Values |
|---|---|
| Sequencing Saturation | 88.33% |
| Percent of Spots Under Tissue | 39.00% |
| Fraction Reads in Spots Under Tissue | 85.71% |
?表3 note說明
Sequencing Saturation：測序飽和度；
Percent of Spots Under Tissue：切片組織下Spots的比例；
Fraction Reads in Spots Under Tissue：切片組織下Reads的比例。
表4 不同水平Spots統計
| Level | 13 (100μm) | 7 (50μm) | 6 (42μm) | 5 (35μm) | 4 (27μm) | 3 (20μm) | ?2(10μm) | 1 (5μm) |
|---|---|---|---|---|---|---|---|---|
| Number of SupSpots | 1,991 | 7,357 | 10,263 | 15,315 | 25,227 | 49,148 | 133,376 | 724,620 |
| Median Genes per SupSpot | 8,787 | 4,377 | 3,566 | 2,740 | 1,929 | 1,160 | 498 | 106 |
| Median UMI Counts per SupSpot | 46,584 | 12,475 | 8,975 | 6,021 | 3,642 | 1,840 | 655 | 120 |
| Total Genes Detected | 37,427 | 37,421 | 37,419 | 37,423 | 37,422 | 37,419 | 37,422 | 37,423 |
?表4 note說明
Level：分辨率水平；
Number of SupSpots：一個或多個spot合并成的supspot個數；
Median Genes per SupSpot：每個SupSpot中基因數目的中位數；
Median UMI Counts per SupSpot：每個SupSpot的UMI中位數；
Total Genes Detected：基因總數。
組織切片HE染色圖
圖1 組織切片HE染色圖
組織umi-count統計圖

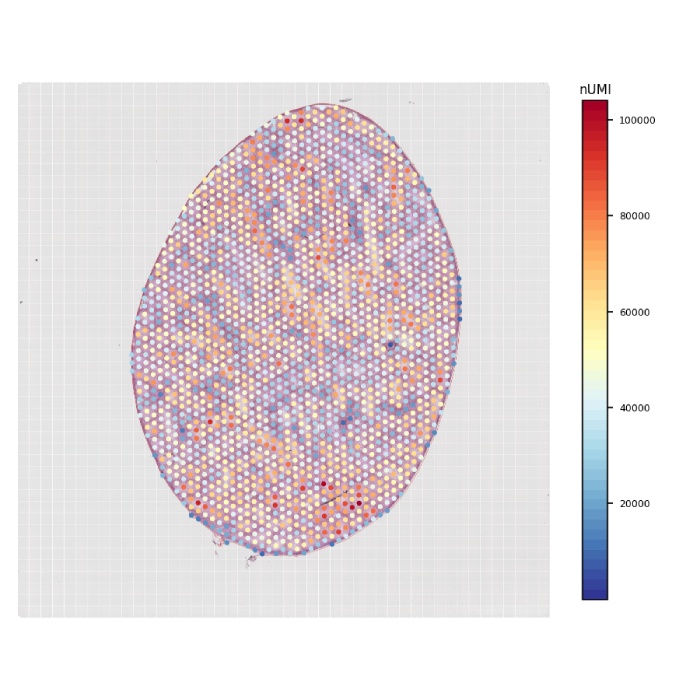

圖2 組織UMI count統計圖
?分辨率水平說明

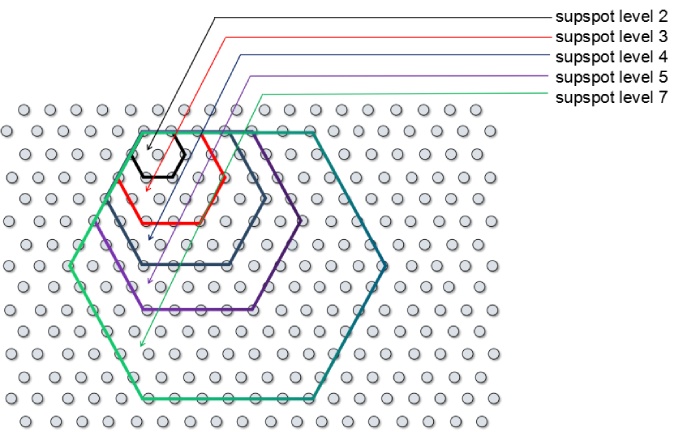

supspot level與spot點數圖
supspot level分辨率表
| SupSpot Level | 分辨率 | Spot點數 |
|---|---|---|
| 13 | 100μm | 469 |
| 7 | 50μm | 127 |
| 6 | 42μm | 91 |
| 5 | 35μm | 61 |
| 4 | 27μm | 37 |
| 3 | 20μm | 19 |
| 2 | 10μm | 7 |
| 1 | 5μm | 1 |
聚類分析

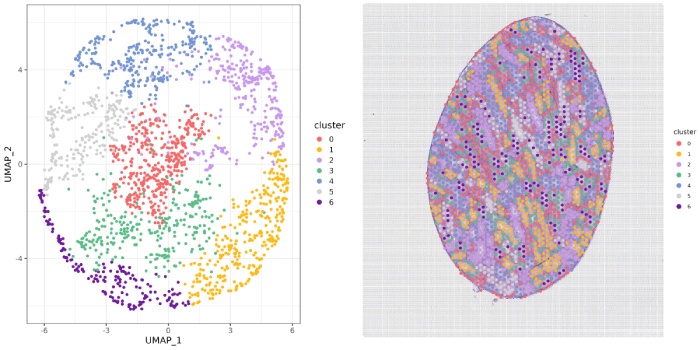

l13-cluster聚類圖

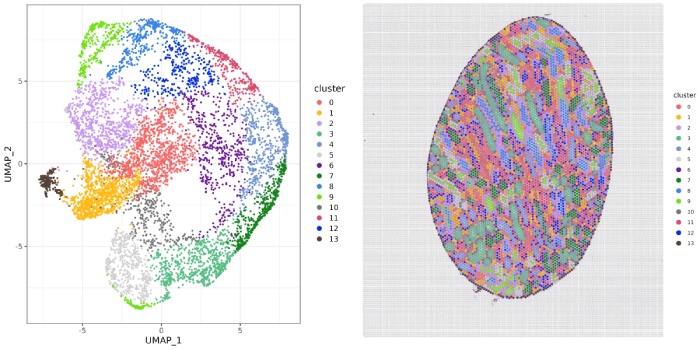

l7-cluster聚類圖

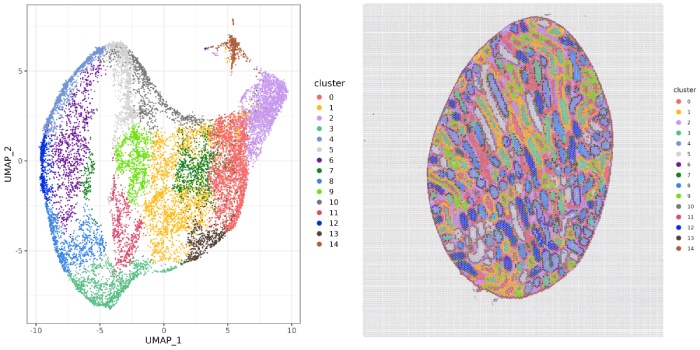

l5-cluster聚類圖
細胞分割
Summary
表5 細胞分割統計
| Type | Value |
|---|---|
| Number of Cells | 137,671 |
| Median Genes per Cells | 645 |
| Median UMI Counts per Cells | 870 |
| Total Genes Detected | 37,319 |
?表5 note說明
Number of Cells：分割得到的細胞數；
Median Genes per Cells：每個細胞中基因數目的中位數；
Median UMI Counts per Cells：細胞的UMI中位數；
Total Genes Detected：基因總數。
組織切片熒光圖
組織切片he分割圖
組織切片熒光分割圖

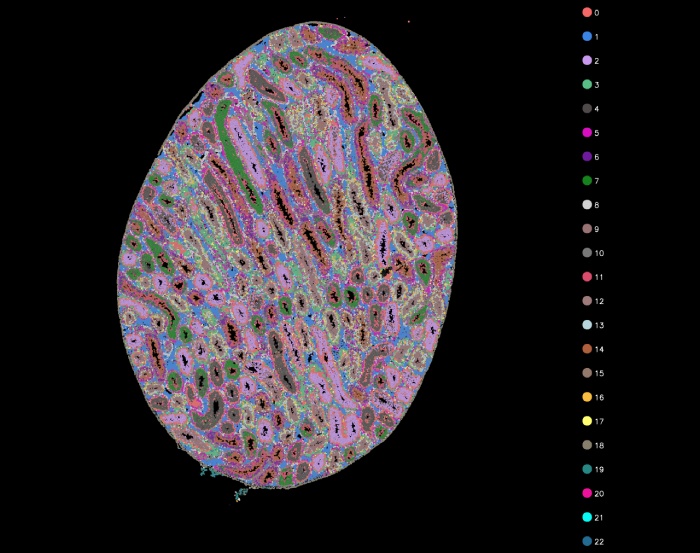

細胞分割聚類圖
